Subwoofer Box Specifications

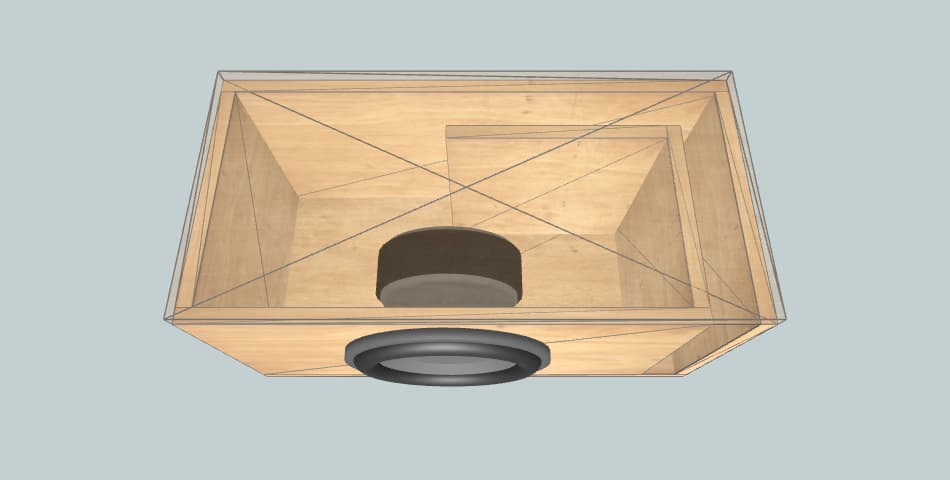

Enclosure Name: phoenix 12
Subwoofer Brand: DL Audio
Subwoofer Size: 12 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
25.59" × 15.35" × 18.26" |
| Material Thickness | 0.71" |
| Net Internal Volume | 2.30 ft3 |
| Tuning Frequency | 29 Hz |
| Port Area | 31 inch2 |
| Port Inlet Width × Height |
2.22" × 13.94" |
| Port Length | 36.45" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 25.59" × 18.26" | 2 |
| Front | 22.66" × 13.94" | 1 |
| Rear | 25.59" × 13.94" | 1 |
| Left | 16.84" × 13.94" | 1 |
| Right | 17.55" × 13.94" | 1 |
| Port | 14.62" × 13.94" | 1 |
| Port | 18.19" × 13.94" | 1 |
