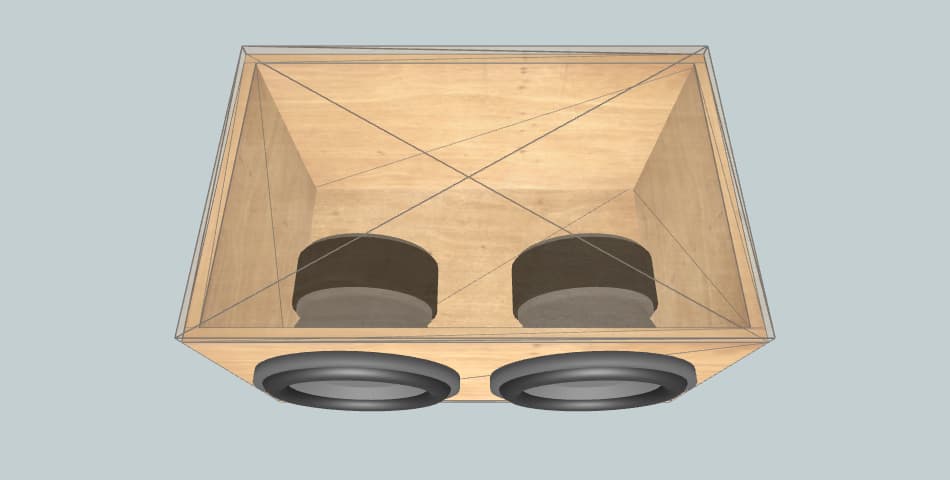

Box External Dimensions Width × Height × Depth |
31.50" × 14.57" × 15.18" |
| Material Thickness | 0.79" |
| Net Internal Volume | 0.99 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 8.8 inch2 |
| Pipe Inner Diameter | 3.35" |
| Pipe Length | 20.09" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.50" × 15.18" | 2 |
| Front / Rear | 31.50" × 12.99" | 2 |
| Left / Right | 13.61" × 12.99" | 2 |
