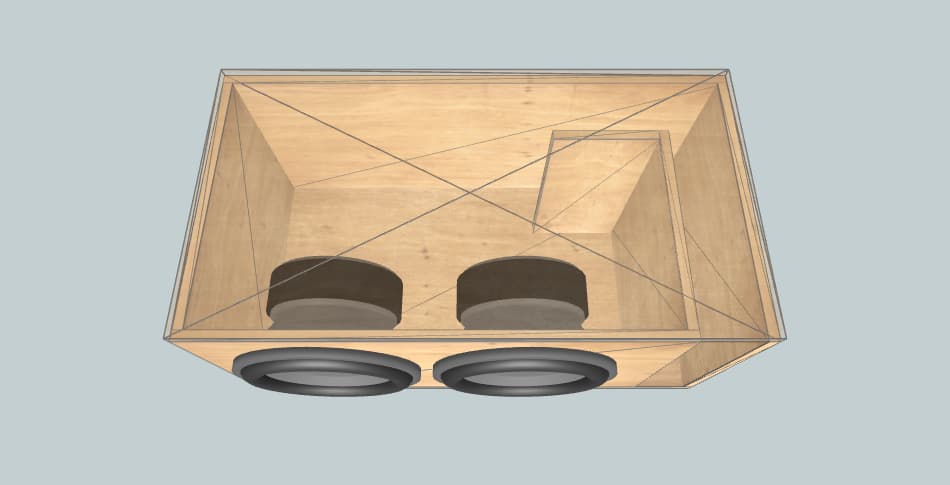

Subwoofer Box Skar Audio Vxf12

Ported Box for Dual 12 inch Subwoofers


12 inch subwoofer box Skar Audio Vxf12

Subwoofer Box Specifications

Enclosure Name: Vxf12

Subwoofer Brand: Skar Audio

Subwoofer Size: 12 inch

Subwoofer Count: 2

Box External Dimensions
Width × Height × Depth
32.00" × 14.00" × 24.90"
Material Thickness 0.63"
Net Internal Volume 3.60 ft3
Tuning Frequency 33 Hz
Port Area 59.5 inch2
Port Inlet
Width × Height
4.67" × 12.74"
Port Length 31.48"


Detail Size Quantity
Top / Bottom 32.00" × 24.90" 2
Front 26.70" × 12.74" 1
Rear 32.00" × 12.74" 1
Left 23.64" × 12.74" 1
Right 24.27" × 12.74" 1
Port 18.97" × 12.74" 1
Port 6.58" × 12.74" 1
Ø282.7mm Ø282.7mm 32.00" 26.70" 24.90" 23.64" 24.90" 23.64" 14.00" 12.74" Top Top Bottom Bottom Rear Front Left Right Rear Front Left Right subbox.pro
