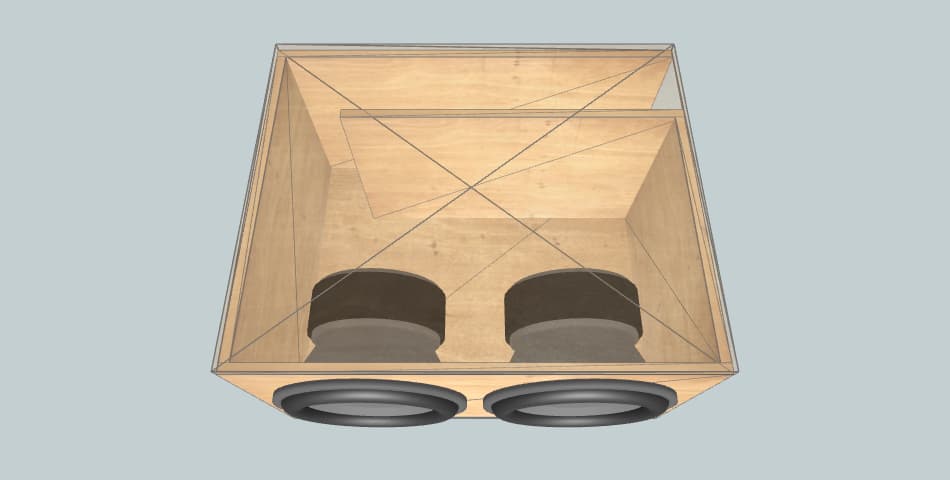

Box External Dimensions Width × Height × Depth |
33.46" × 18.90" × 26.52" |
| Material Thickness | 0.71" |
| Net Internal Volume | 5.30 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 85.2 inch2 |
| Port Inlet Width × Height |
4.88" × 17.48" |
| Port Length | 44.02" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 33.46" × 26.52" | 2 |
| Front | 27.88" × 17.48" | 1 |
| Rear | 33.46" × 17.48" | 1 |
| Left | 25.11" × 17.48" | 1 |
| Right | 25.81" × 17.48" | 1 |
| Port | 20.23" × 17.48" | 1 |
| Port | 17.49" × 17.48" | 1 |
