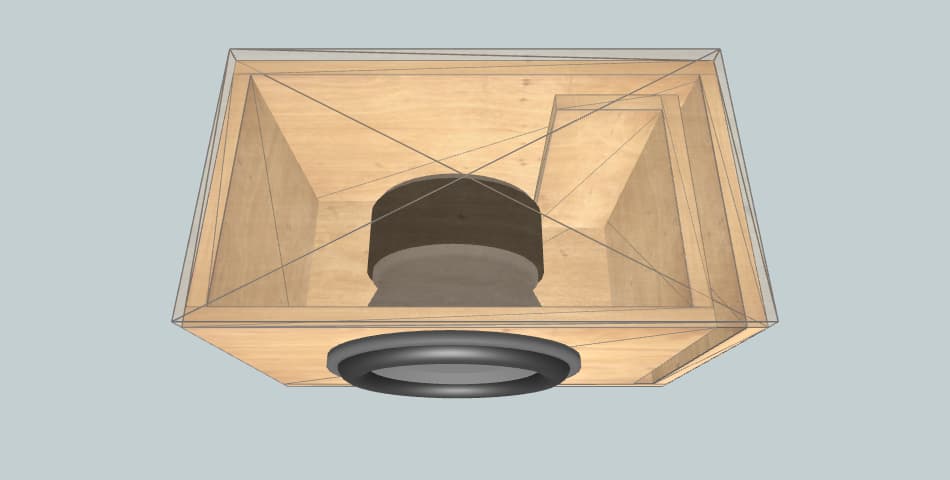

Box External Dimensions Width × Height × Depth |
51.18" × 33.86" × 21.54" |
| Material Thickness | 1.42" |
| Net Internal Volume | 12.71 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 158.8 inch2 |
| Port Inlet Width × Height |
5.12" × 31.02" |
| Port Length | 22.00" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 51.18" × 21.54" | 2 |
| Front | 44.65" × 31.02" | 1 |
| Rear | 51.18" × 31.02" | 1 |
| Left | 18.70" × 31.02" | 1 |
| Right | 20.12" × 31.02" | 1 |
| Port | 13.59" × 31.02" | 1 |
| Port | 0.46" × 31.02" | 1 |
