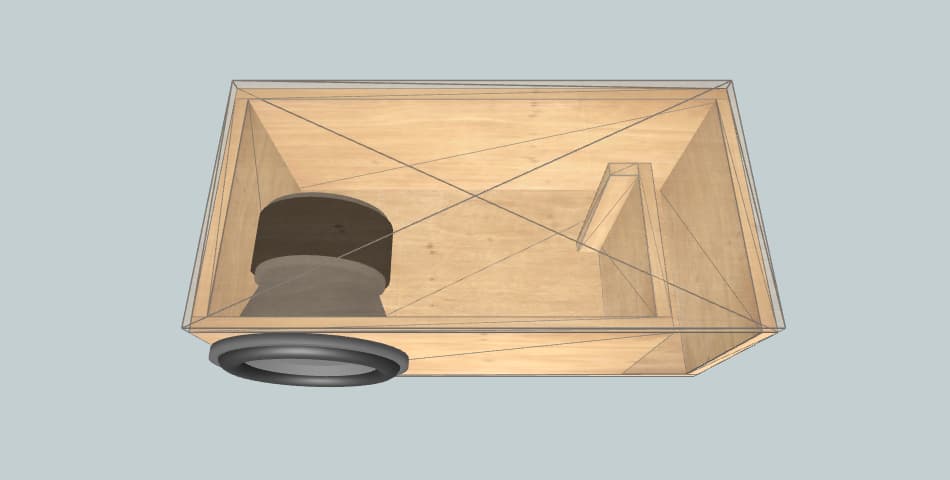

Box External Dimensions Width × Height × Depth |
30.31" × 15.75" × 25.44" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.59 ft3 |
| Tuning Frequency | 31 Hz |
| Port Area | 31 inch2 |
| Port Inlet Width × Height |
2.16" × 14.33" |
| Port Length | 47.87" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 30.31" × 25.44" | 2 |
| Front | 27.44" × 14.33" | 1 |
| Rear | 30.31" × 14.33" | 1 |
| Left | 24.02" × 14.33" | 1 |
| Right | 24.73" × 14.33" | 1 |
| Port | 21.86" × 14.33" | 1 |
| Port | 22.43" × 14.33" | 1 |
