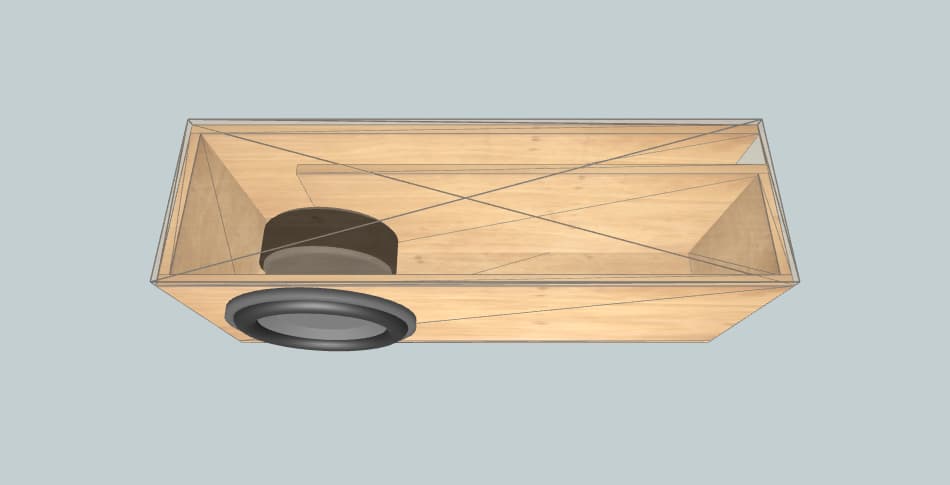

Box External Dimensions Width × Height × Depth |
21.65" × 15.75" × 15.84" |
| Material Thickness | 0.63" |
| Net Internal Volume | 2.30 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 22.5 inch2 |
| Pipe Inner Diameter | 5.35" |
| Pipe Length | 15.12" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.65" × 15.84" | 2 |
| Front / Rear | 21.65" × 14.49" | 2 |
| Left / Right | 14.58" × 14.49" | 2 |
