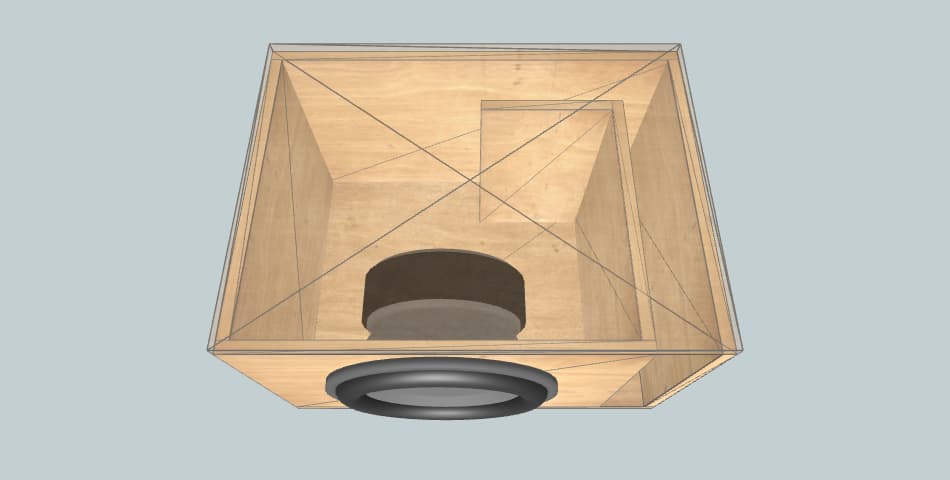

Box External Dimensions Width × Height × Depth |
34.00" × 17.25" × 27.55" |
| Material Thickness | 0.75" |
| Net Internal Volume | 7.50 ft3 |
| Tuning Frequency | 32.5 Hz |
| Port Area | 47.3 inch2 |
| Port Inlet Width × Height |
3.00" × 15.76" |
| Port Length | 7.68" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 34.00" × 27.55" | 2 |
| Front / Rear | 34.00" × 15.76" | 2 |
| Left | 26.05" × 15.76" | 1 |
| Right | 22.30" × 15.76" | 1 |
| Port | 7.68" × 15.76" | 1 |
