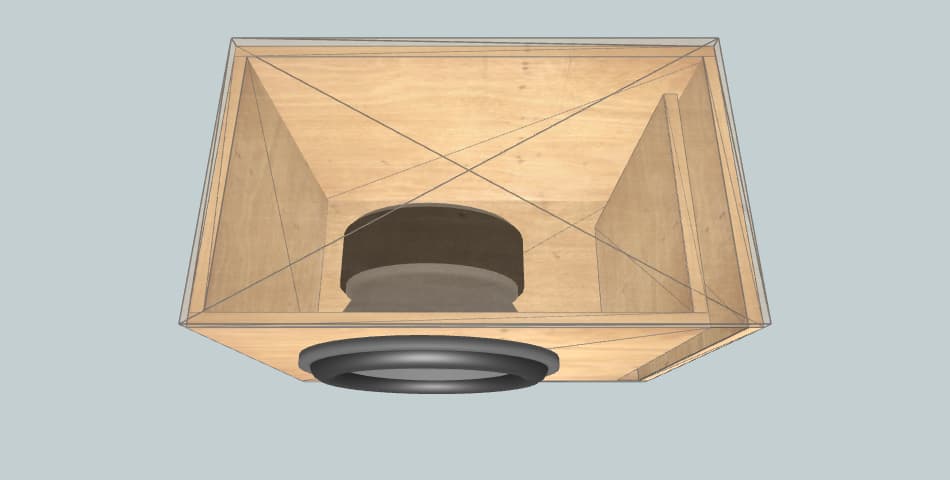

Box External Dimensions Width × Height × Depth |
29.53" × 17.72" × 19.88" |
| Material Thickness | 0.71" |
| Net Internal Volume | 2.38 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 12.7 inch2 |
| Port Inlet Width × Height |
0.78" × 16.30" |
| Port Length | 13.93" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 29.53" × 19.88" | 2 |
| Front | 28.04" × 16.30" | 1 |
| Rear | 29.53" × 16.30" | 1 |
| Left | 18.46" × 16.30" | 1 |
| Right | 19.17" × 16.30" | 1 |
| Port | 13.22" × 16.30" | 1 |
