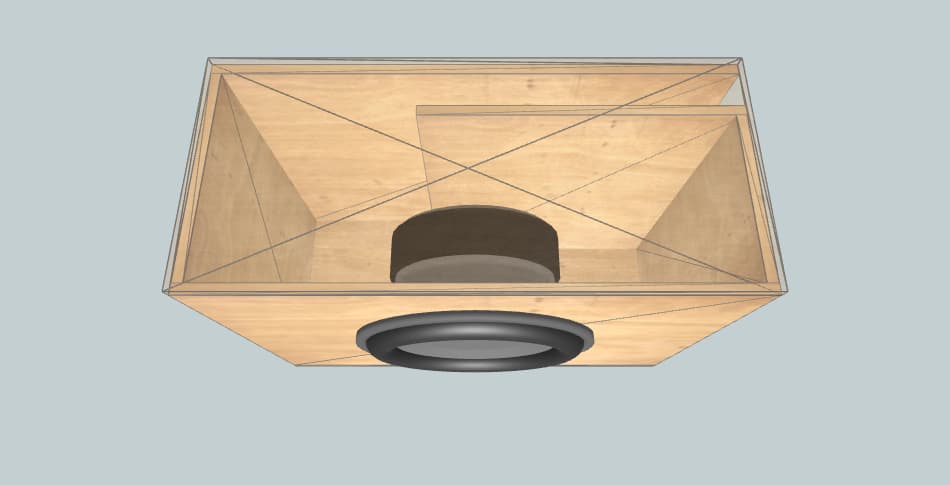

Subwoofer Box Specifications
Enclosure Name: NEW X 18 v2 28hz box 7 cubes
Subwoofer Brand: Sundown Audio
Subwoofer Size: 18 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
38.00" × 23.00" × 26.00" |
| Material Thickness | 1.00" |
| Net Internal Volume | 7.00 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 112 inch2 |
| Port Inlet Width × Height |
5.33" × 21.00" |
| Port Length | 42.06" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 38.00" × 26.00" | 2 |
| Front | 31.67" × 21.00" | 1 |
| Rear | 38.00" × 21.00" | 1 |
| Left | 24.00" × 21.00" | 1 |
| Right | 25.00" × 21.00" | 1 |
| Port | 18.67" × 21.00" | 1 |
| Port | 16.06" × 21.00" | 1 |
