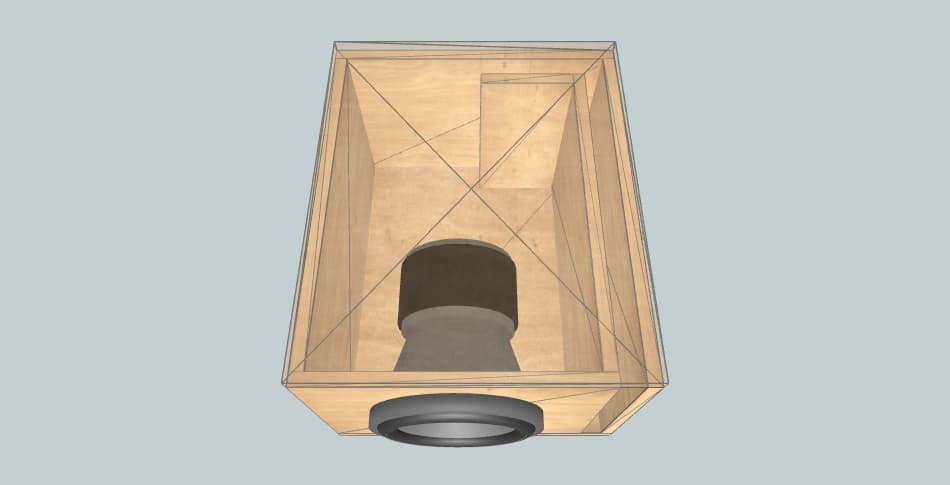

Box External Dimensions Width × Height × Depth |
15.75" × 13.78" × 18.84" |
| Material Thickness | 0.47" |
| Net Internal Volume | 1.77 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 17.8 inch2 |
| Port Inlet Width × Height |
1.39" × 12.83" |
| Port Length | 17.04" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 15.75" × 18.84" | 2 |
| Front | 13.89" × 12.83" | 1 |
| Rear | 15.75" × 12.83" | 1 |
| Left | 17.89" × 12.83" | 1 |
| Right | 18.37" × 12.83" | 1 |
| Port | 16.03" × 12.83" | 1 |
