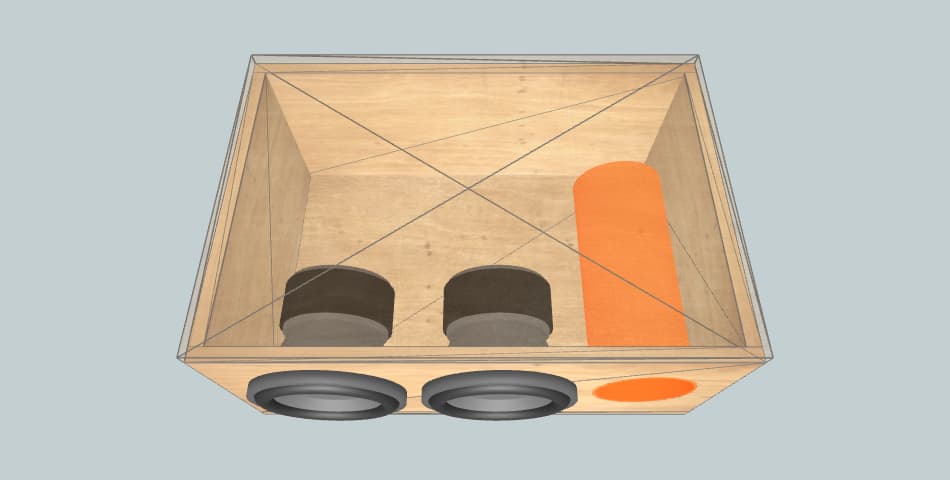

Subwoofer Box Specifications
Enclosure Name: 777
Subwoofer Size: 8 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
35.43" × 11.81" × 12.11" |
| Material Thickness | 0.39" |
| Net Internal Volume | 1.94 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 27.1 inch2 |
| Port Inlet Width × Height |
2.46" × 11.02" |
| Port Length | 24.35" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 35.43" × 12.11" | 2 |
| Front | 32.58" × 11.02" | 1 |
| Rear | 35.43" × 11.02" | 1 |
| Left | 11.33" × 11.02" | 1 |
| Right | 11.72" × 11.02" | 1 |
| Port | 8.87" × 11.02" | 1 |
| Port | 12.23" × 11.02" | 1 |
