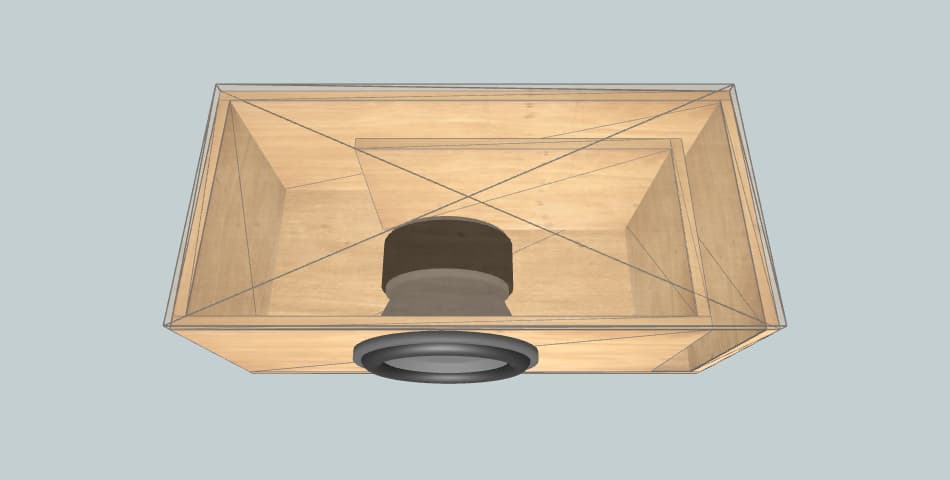

Box External Dimensions Width × Height × Depth |
26.00" × 14.00" × 23.67" |
| Material Thickness | 0.50" |
| Net Internal Volume | 3.70 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 38 inch2 |
| Port Inlet Width × Height |
2.93" × 13.00" |
| Port Length | 23.20" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 26.00" × 23.67" | 2 |
| Front | 22.57" × 13.00" | 1 |
| Rear | 26.00" × 13.00" | 1 |
| Left | 22.67" × 13.00" | 1 |
| Right | 23.17" × 13.00" | 1 |
| Port | 19.24" × 13.00" | 1 |
