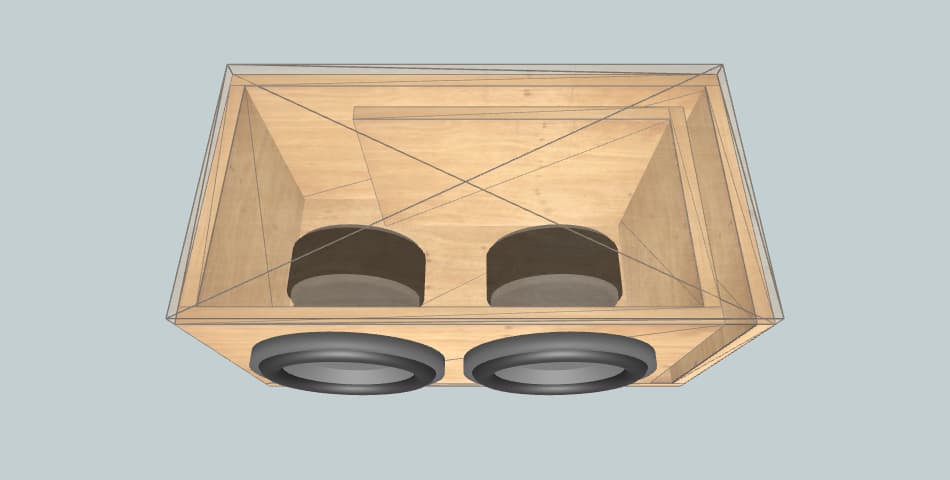

Box External Dimensions Width × Height × Depth |
23.62" × 13.78" × 13.37" |
| Material Thickness | 0.63" |
| Net Internal Volume | 1.94 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 4.4 inch2 |
| Pipe Inner Diameter | 2.36" |
| Pipe Length | 7.60" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 13.37" | 2 |
| Front / Rear | 23.62" × 12.52" | 2 |
| Left / Right | 12.11" × 12.52" | 2 |
