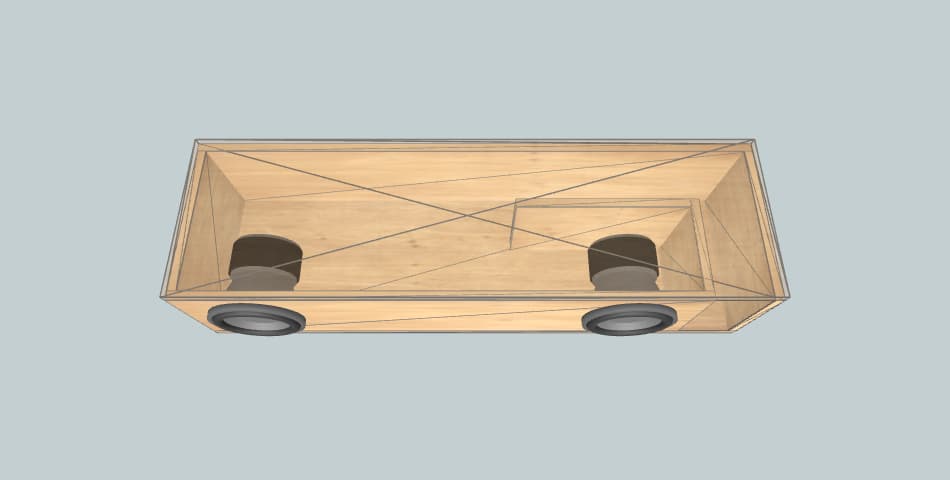

Subwoofer Box Specifications
Enclosure Name: ZVX-8's Suburban Center Port
Subwoofer Brand: Skar Audio
Subwoofer Size: 8 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
49.00" × 11.00" × 14.45" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.50 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 45 inch2 |
| Port Inlet Width × Height |
4.74" × 9.50" |
| Port Length | 29.22" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 49.00" × 14.45" | 2 |
| Front | 43.52" × 9.50" | 1 |
| Rear | 49.00" × 9.50" | 1 |
| Left | 12.96" × 9.50" | 1 |
| Right | 13.70" × 9.50" | 1 |
| Port | 8.22" × 9.50" | 1 |
| Port | 14.76" × 9.50" | 1 |
