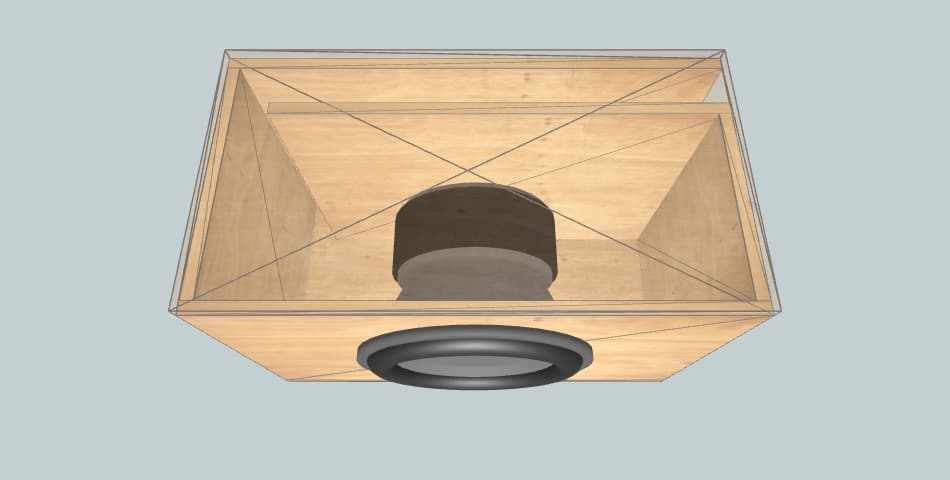

Box External Dimensions Width × Height × Depth |
33.46" × 18.90" × 20.22" |
| Material Thickness | 0.71" |
| Net Internal Volume | 4.59 ft3 |
| Tuning Frequency | 26.17 Hz |
| Port Area | 51.6 inch2 |
| Port Inlet Width × Height |
2.95" × 17.48" |
| Port Length | 35.44" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 33.46" × 20.22" | 2 |
| Front | 29.80" × 17.48" | 1 |
| Rear | 33.46" × 17.48" | 1 |
| Left | 18.81" × 17.48" | 1 |
| Right | 19.52" × 17.48" | 1 |
| Port | 15.85" × 17.48" | 1 |
| Port | 15.22" × 17.48" | 1 |
