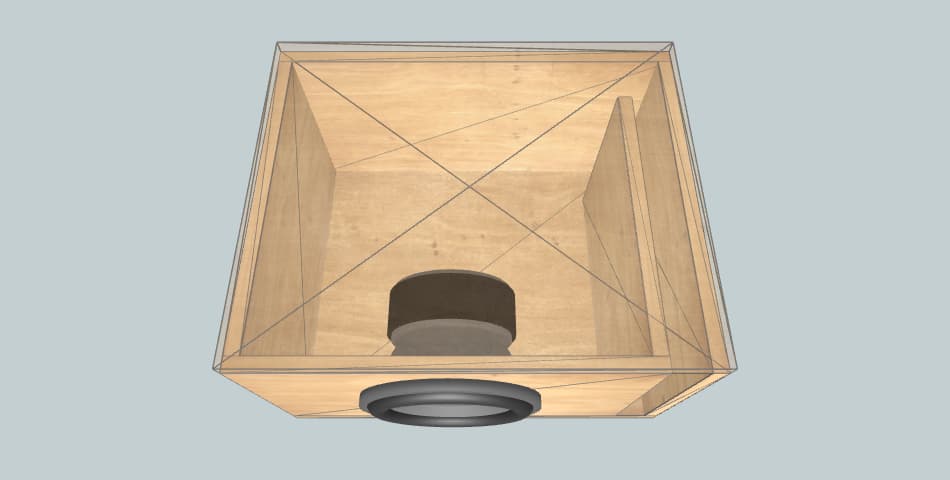

Box External Dimensions Width × Height × Depth |
19.69" × 15.16" × 10.97" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.20 ft3 |
| Tuning Frequency | 39 Hz |
| Port Area | 14.7 inch2 |
| Port Inlet Width × Height |
1.07" × 13.74" |
| Port Length | 17.03" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 19.69" × 10.97" | 2 |
| Front | 17.91" × 13.74" | 1 |
| Rear | 19.69" × 13.74" | 1 |
| Left | 9.55" × 13.74" | 1 |
| Right | 10.26" × 13.74" | 1 |
| Port | 8.48" × 13.74" | 1 |
| Port | 6.06" × 13.74" | 1 |
