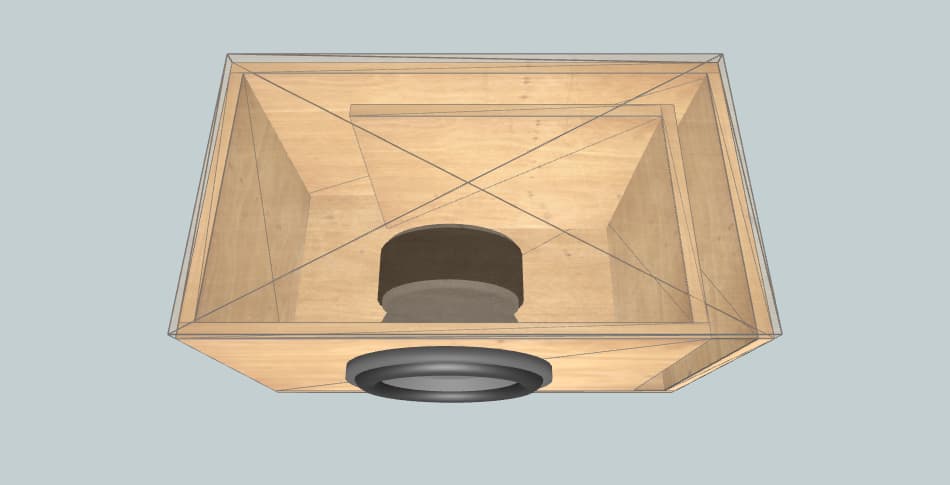

Box External Dimensions Width × Height × Depth |
27.56" × 13.78" × 16.51" |
| Material Thickness | 0.63" |
| Net Internal Volume | 2.30 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 31 inch2 |
| Port Inlet Width × Height |
2.48" × 12.52" |
| Port Length | 28.72" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.56" × 16.51" | 2 |
| Front | 24.45" × 12.52" | 1 |
| Rear | 27.56" × 12.52" | 1 |
| Left | 15.25" × 12.52" | 1 |
| Right | 15.88" × 12.52" | 1 |
| Port | 12.78" × 12.52" | 1 |
| Port | 12.21" × 12.52" | 1 |
