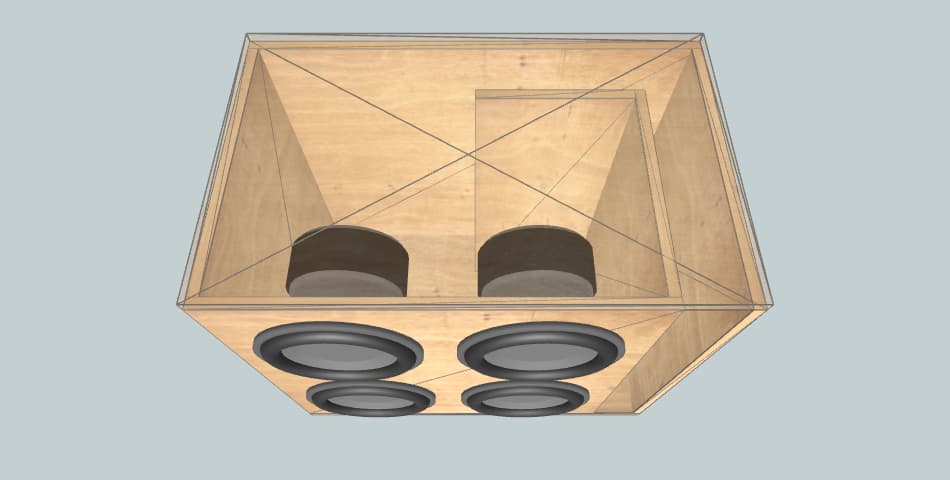

Box External Dimensions Width × Height × Depth |
35.00" × 20.00" × 24.47" |
| Material Thickness | 0.72" |
| Net Internal Volume | 8.00 ft3 |
| Tuning Frequency | 31.4 Hz |
| Port Area | 52.6 inch2 |
| Pipe Inner Diameter | 8.19" |
| Pipe Length | 9.94" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 35.00" × 24.47" | 2 |
| Front / Rear | 35.00" × 18.56" | 2 |
| Left / Right | 23.03" × 18.56" | 2 |
