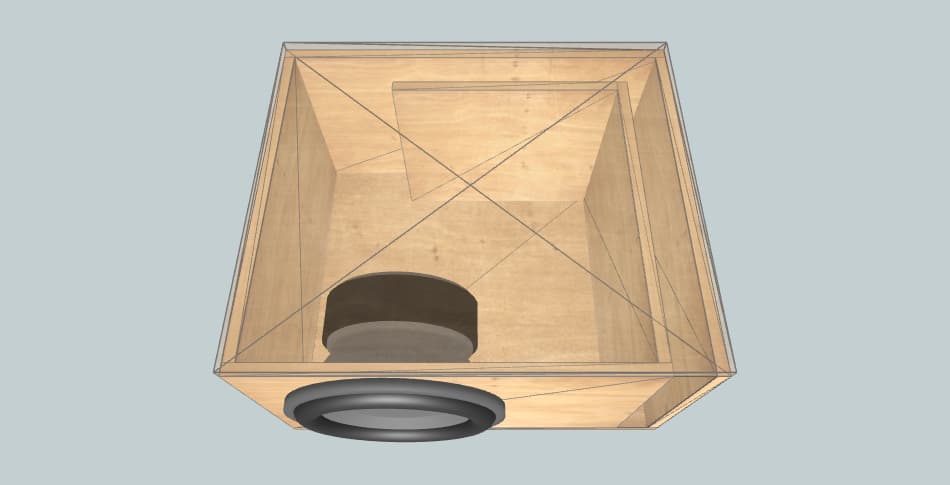

Box External Dimensions Width × Height × Depth |
20.47" × 17.32" × 14.39" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.12 ft3 |
| Tuning Frequency | 39 Hz |
| Port Area | 19.0 inch2 |
| Pipe Inner Diameter | 4.92" |
| Pipe Length | 11.06" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.47" × 14.39" | 2 |
| Front / Rear | 20.47" × 15.83" | 2 |
| Left / Right | 12.89" × 15.83" | 2 |
