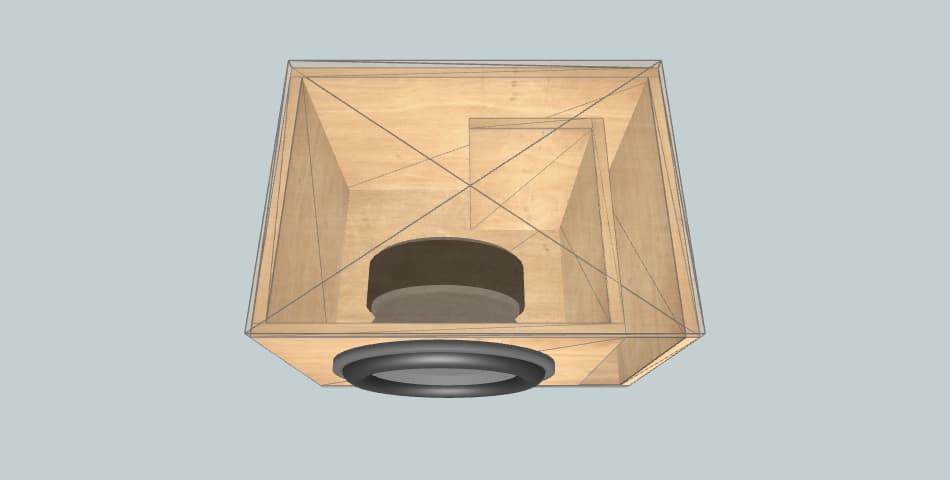

Box External Dimensions Width × Height × Depth |
29.53" × 21.65" × 24.81" |
| Material Thickness | 0.71" |
| Net Internal Volume | 7.06 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 77.5 inch2 |
| Port Inlet Width × Height |
3.83" × 20.24" |
| Port Length | 13.39" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 29.53" × 24.81" | 2 |
| Front | 24.99" × 20.24" | 1 |
| Rear | 29.53" × 20.24" | 1 |
| Left | 23.39" × 20.24" | 1 |
| Right | 24.10" × 20.24" | 1 |
| Port | 12.68" × 20.24" | 1 |
