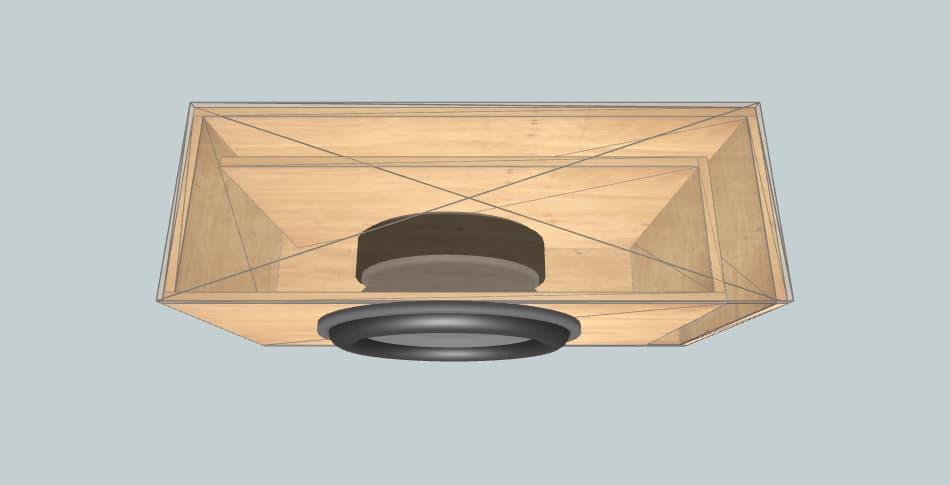

Box External Dimensions Width × Height × Depth |
27.56" × 21.65" × 33.43" |
| Material Thickness | 0.75" |
| Net Internal Volume | 7.06 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 126.5 inch2 |
| Port Inlet Width × Height |
6.28" × 20.16" |
| Port Length | 30.59" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.56" × 33.43" | 2 |
| Front | 20.54" × 20.16" | 1 |
| Rear | 27.56" × 20.16" | 1 |
| Left | 31.93" × 20.16" | 1 |
| Right | 32.68" × 20.16" | 1 |
| Port | 24.91" × 20.16" | 1 |
