Subwoofer Box Avatar Audio SST-12

Ported Box for 12 inch Subwoofer

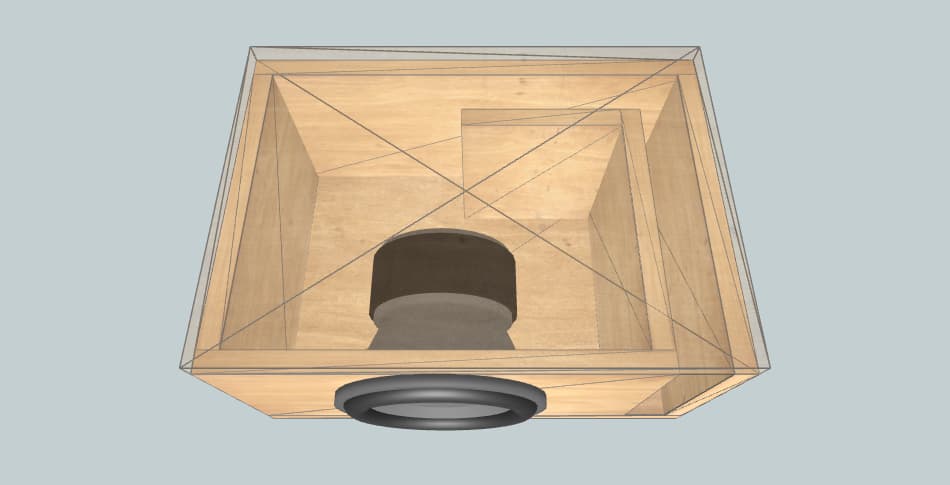

12 inch subwoofer box Avatar Audio SST-12

Subwoofer Box Specifications

Enclosure Name: SST-12

Subwoofer Brand: Avatar Audio

Subwoofer Size: 12 inch

Subwoofer Count: 1

Box External Dimensions
Width × Height × Depth
27.56" × 13.78" × 12.85"
Material Thickness 0.63"
Net Internal Volume 1.77 ft3
Tuning Frequency 35 Hz
Port Area 23.3 inch2
Port Inlet
Width × Height
1.86" × 12.52"
Port Length 23.06"


Detail Size Quantity
Top / Bottom 27.56" × 12.85" 2
Front 25.07" × 12.52" 1
Rear 27.56" × 12.52" 1
Left 11.59" × 12.52" 1
Right 12.22" × 12.52" 1
Port 9.73" × 12.52" 1
Port 10.21" × 12.52" 1
Ø274mm 27.56" 25.07" 12.85" 11.59" 12.85" 11.59" 13.78" 12.52" Top Top Bottom Bottom Rear Front Left Right Rear Front Left Right subbox.pro
