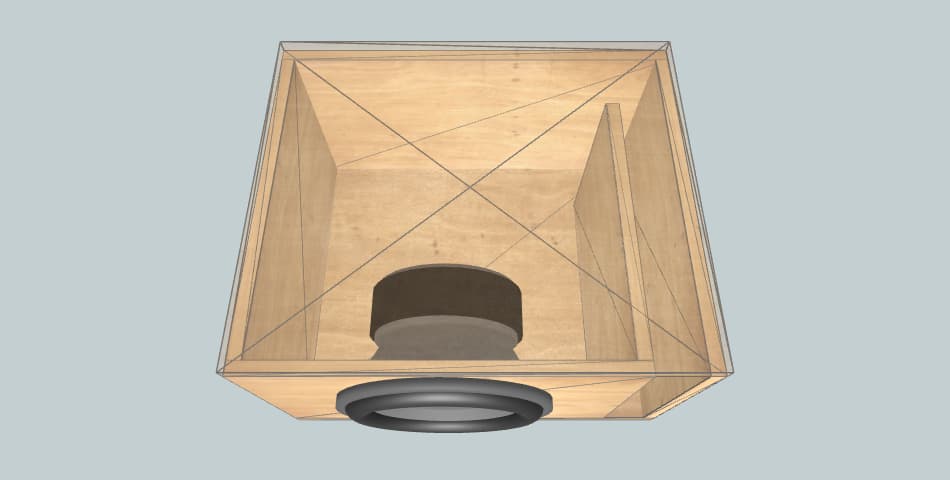

Box External Dimensions Width × Height × Depth |
35.00" × 18.00" × 34.62" |
| Material Thickness | 1.00" |
| Net Internal Volume | 6.00 ft3 |
| Tuning Frequency | 25 Hz |
| Port Area | 50 inch2 |
| Port Inlet Width × Height |
3.13" × 16.00" |
| Port Length | 27.28" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 35.00" × 34.62" | 2 |
| Front | 30.87" × 16.00" | 1 |
| Rear | 35.00" × 16.00" | 1 |
| Left | 32.62" × 16.00" | 1 |
| Right | 33.62" × 16.00" | 1 |
| Port | 26.28" × 16.00" | 1 |
