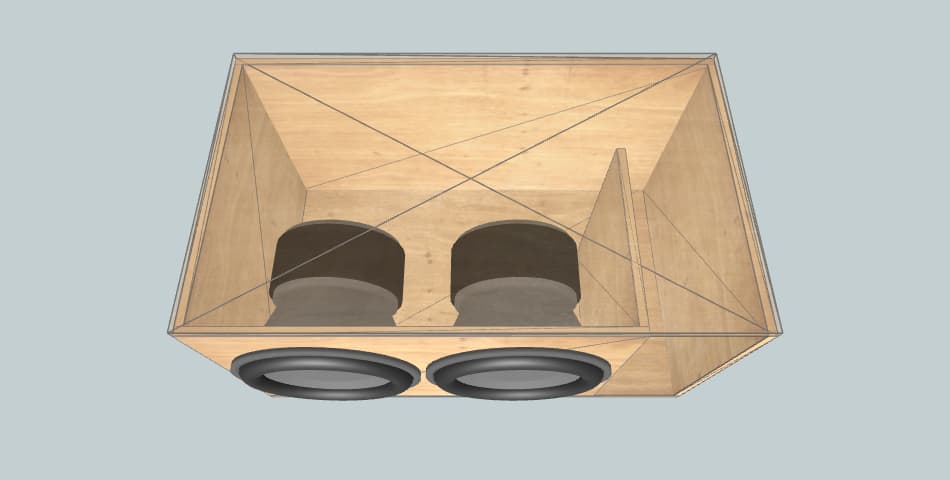

Subwoofer Box Specifications
Enclosure Name: X18v3 v2
Subwoofer Brand: Sundown Audio
Subwoofer Size: 18 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
48.00" × 26.00" × 28.66" |
| Material Thickness | 0.75" |
| Net Internal Volume | 14.00 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 230 inch2 |
| Port Inlet Width × Height |
9.39" × 24.50" |
| Port Length | 24.72" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 48.00" × 28.66" | 2 |
| Front | 37.87" × 24.50" | 1 |
| Rear | 48.00" × 24.50" | 1 |
| Left | 27.16" × 24.50" | 1 |
| Right | 27.91" × 24.50" | 1 |
| Port | 17.03" × 24.50" | 1 |
