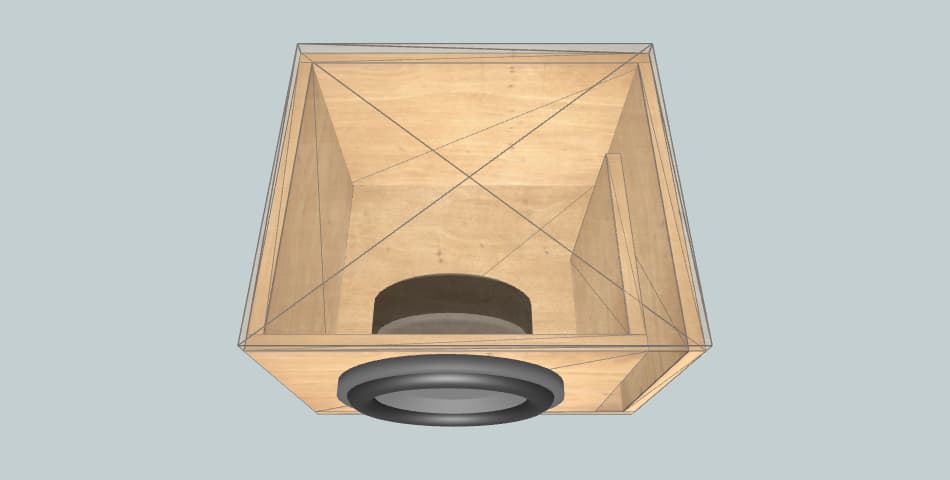

Box External Dimensions Width × Height × Depth |
20.00" × 11.00" × 14.70" |
| Material Thickness | 0.63" |
| Net Internal Volume | 1.25 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 13.5 inch2 |
| Port Inlet Width × Height |
1.39" × 9.74" |
| Port Length | 17.96" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.00" × 14.70" | 2 |
| Front / Rear | 20.00" × 9.74" | 2 |
| Left | 13.44" × 9.74" | 1 |
| Right | 11.43" × 9.74" | 1 |
| Port | 17.96" × 9.74" | 1 |
