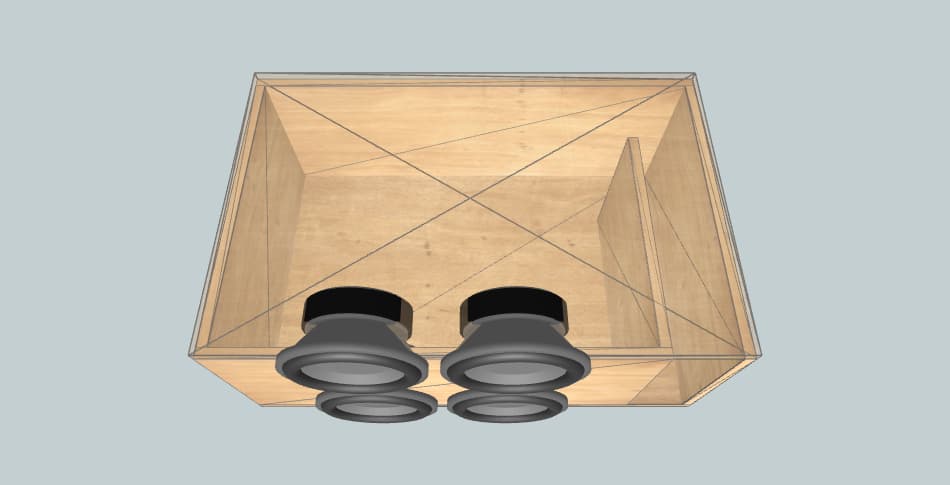

Box External Dimensions Width × Height × Depth |
30.30" × 14.00" × 27.24" |
| Material Thickness | 0.75" |
| Net Internal Volume | 3.98 ft3 |
| Tuning Frequency | 22 Hz |
| Port Area | 35.3 inch2 |
| Port Inlet Width × Height |
2.82" × 12.50" |
| Port Length | 42.10" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 30.30" × 27.24" | 2 |
| Front | 26.73" × 12.50" | 1 |
| Rear | 30.30" × 12.50" | 1 |
| Left | 25.75" × 12.50" | 1 |
| Right | 26.50" × 12.50" | 1 |
| Port | 22.93" × 12.50" | 1 |
| Port | 14.86" × 12.50" | 1 |
