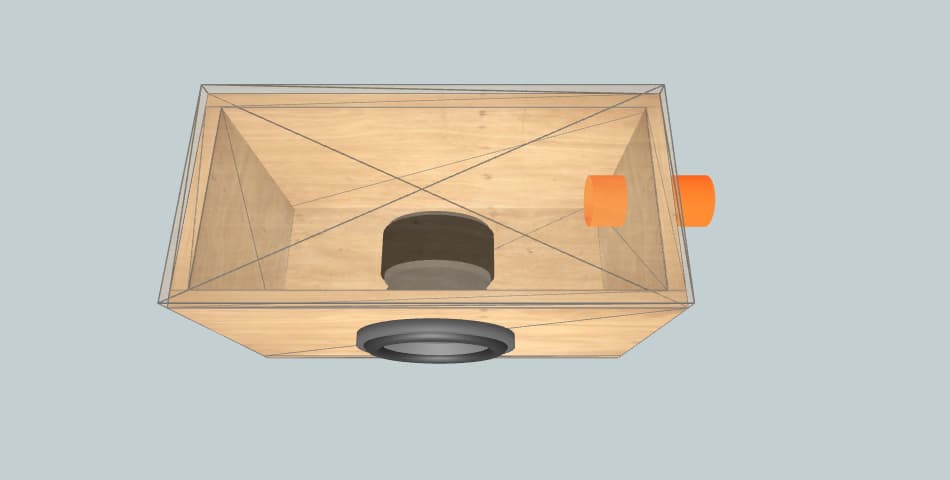

Box External Dimensions Width × Height × Depth |
14.96" × 13.78" × 11.96" |
| Material Thickness | 0.63" |
| Net Internal Volume | 0.81 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 10.7 inch2 |
| Port Inlet Width × Height |
0.85" × 12.52" |
| Port Length | 23.37" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 14.96" × 11.96" | 2 |
| Front | 13.48" × 12.52" | 1 |
| Rear | 14.96" × 12.52" | 1 |
| Left | 10.70" × 12.52" | 1 |
| Right | 11.33" × 12.52" | 1 |
| Port | 9.85" × 12.52" | 1 |
| Port | 11.40" × 12.52" | 1 |
