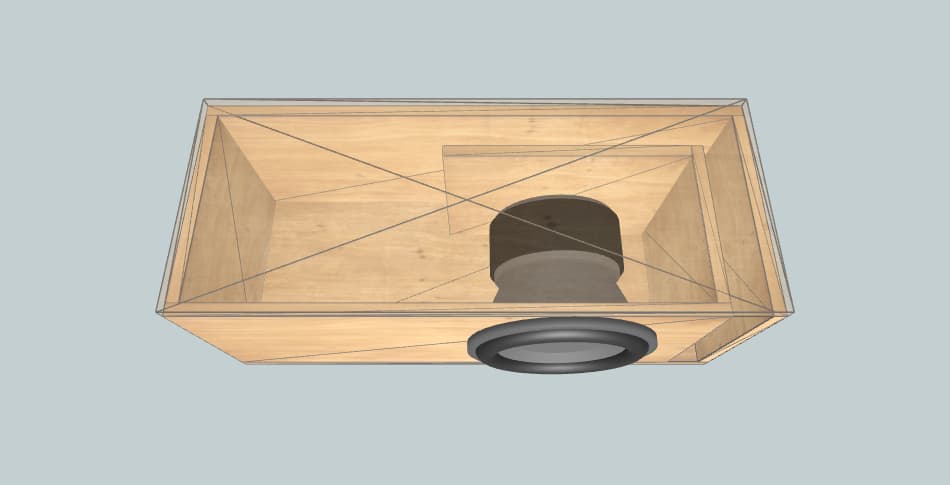

Box External Dimensions Width × Height × Depth |
22.05" × 15.75" × 15.09" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.66 ft3 |
| Tuning Frequency | 35.04 Hz |
| Port Area | 28.1 inch2 |
| Port Inlet Width × Height |
1.97" × 14.25" |
| Port Length | 30.61" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 22.05" × 15.09" | 2 |
| Front | 19.33" × 14.25" | 1 |
| Rear | 22.05" × 14.25" | 1 |
| Left | 13.59" × 14.25" | 1 |
| Right | 14.34" × 14.25" | 1 |
| Port | 11.62" × 14.25" | 1 |
| Port | 15.52" × 14.25" | 1 |
