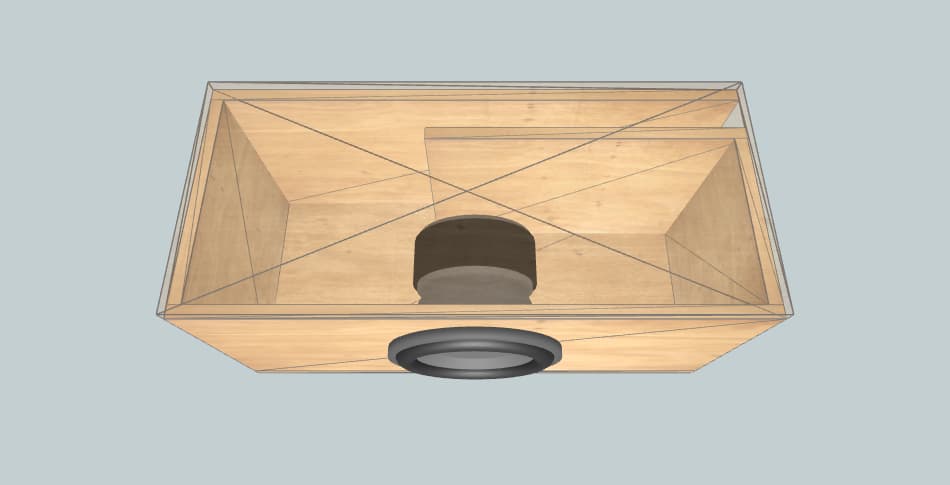

Box External Dimensions Width × Height × Depth |
27.50" × 9.50" × 14.01" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.25 ft3 |
| Tuning Frequency | 38 Hz |
| Port Area | 17 inch2 |
| Port Inlet Width × Height |
2.12" × 8.00" |
| Port Length | 20.33" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.50" × 14.01" | 2 |
| Front | 24.63" × 8.00" | 1 |
| Rear | 27.50" × 8.00" | 1 |
| Left | 12.52" × 8.00" | 1 |
| Right | 13.26" × 8.00" | 1 |
| Port | 10.39" × 8.00" | 1 |
| Port | 6.31" × 8.00" | 1 |
