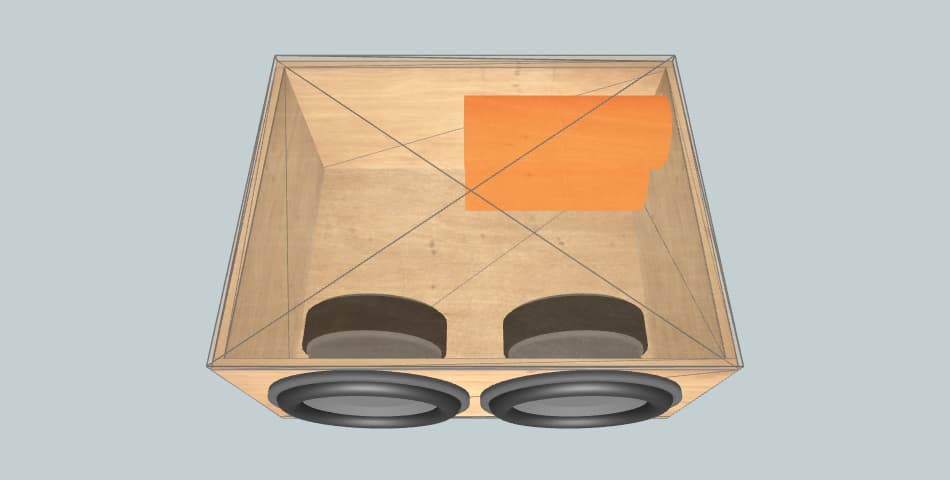

Subwoofer Box Specifications
Enclosure Name: ZVX 15s
Subwoofer Brand: Skar Audio
Subwoofer Size: 15 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
43.00" × 20.00" × 23.95" |
| Material Thickness | 0.75" |
| Net Internal Volume | 8.00 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 110 inch2 |
| Port Inlet Width × Height |
5.94" × 18.50" |
| Port Length | 23.37" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 43.00" × 23.95" | 2 |
| Front | 36.31" × 18.50" | 1 |
| Rear | 43.00" × 18.50" | 1 |
| Left | 22.45" × 18.50" | 1 |
| Right | 23.20" × 18.50" | 1 |
| Port | 15.76" × 18.50" | 1 |
