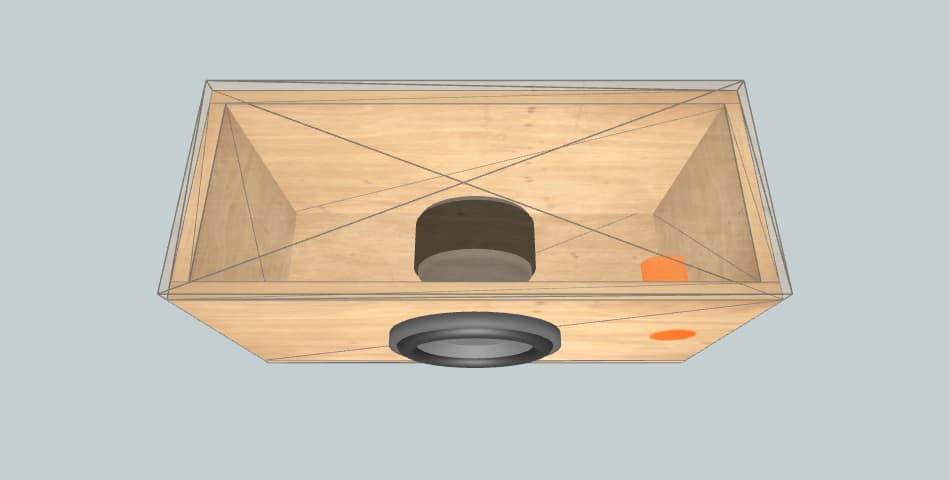

Box External Dimensions Width × Height × Depth |
21.65" × 11.42" × 14.94" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.41 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 12.4 inch2 |
| Port Inlet Width × Height |
1.24" × 10.00" |
| Port Length | 18.79" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.65" × 14.94" | 2 |
| Front | 19.70" × 10.00" | 1 |
| Rear | 21.65" × 10.00" | 1 |
| Left | 13.53" × 10.00" | 1 |
| Right | 14.24" × 10.00" | 1 |
| Port | 12.29" × 10.00" | 1 |
| Port | 3.84" × 10.00" | 1 |
