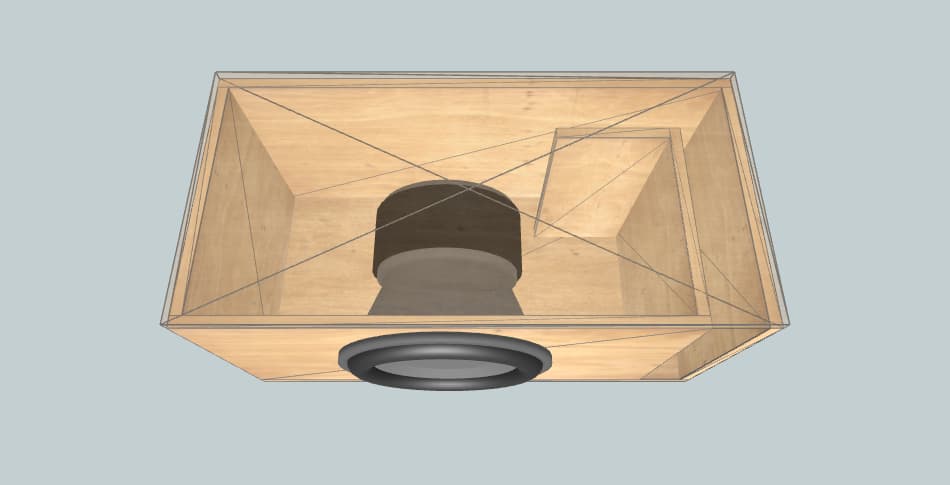

Box External Dimensions Width × Height × Depth |
41.66" × 34.00" × 32.67" |
| Material Thickness | 1.48" |
| Net Internal Volume | 5.67 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 154.8 inch2 |
| Port Inlet Width × Height |
4.99" × 31.04" |
| Port Length | 44.82" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 41.66" × 32.67" | 2 |
| Front | 35.19" × 31.04" | 1 |
| Rear | 41.66" × 31.04" | 1 |
| Left | 29.70" × 31.04" | 1 |
| Right | 31.19" × 31.04" | 1 |
| Port | 24.72" × 31.04" | 1 |
| Port | 12.15" × 31.04" | 1 |
