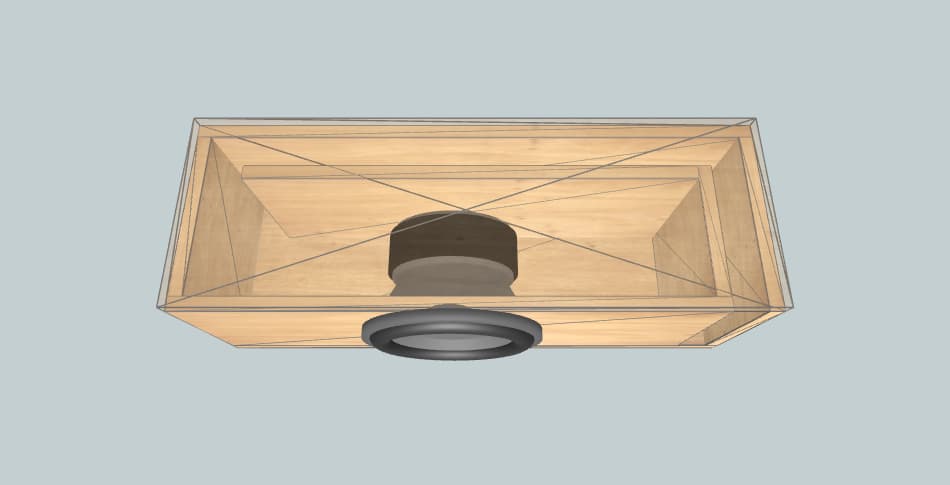

Box External Dimensions Width × Height × Depth |
26.00" × 13.00" × 9.08" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.00 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 9.5 inch2 |
| Port Inlet Width × Height |
0.83" × 11.50" |
| Port Length | 24.68" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 26.00" × 9.08" | 2 |
| Front / Rear | 26.00" × 11.50" | 2 |
| Left | 7.58" × 11.50" | 1 |
| Right | 6.01" × 11.50" | 1 |
| Port | 24.68" × 11.50" | 1 |
