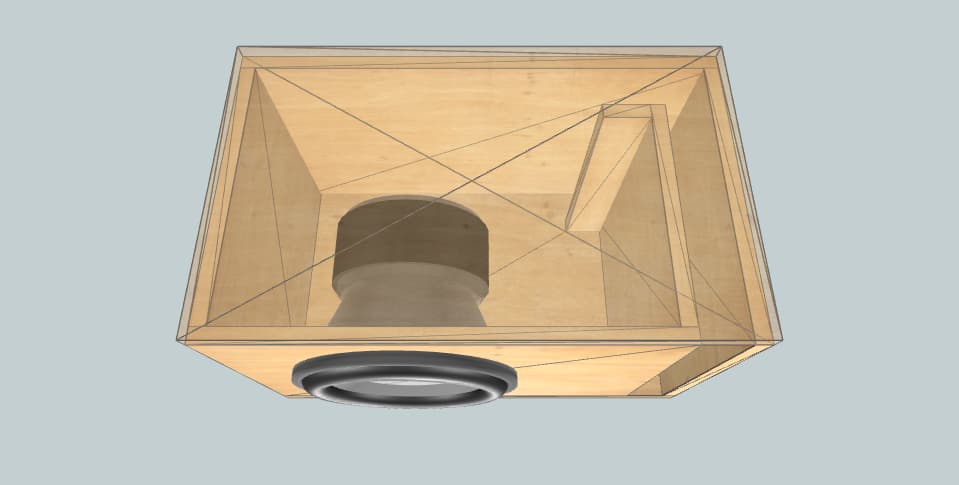

Ported Box for 12 inch Subwoofer


12 inch subwoofer box GS Audio

Subwoofer Box Specifications

Enclosure Name: GS Audio

Enclosure Creator: anonymous

Subwoofer Size: 12 inch

Subwoofer Quantity: 1

Box External Dimensions
Width × Height × Depth
25.59" × 15.75" × 15.78"
Material Thickness 0.79"
Net Internal Volume 2.12 ft3
Tuning Frequency 41 Hz
Port Area 33.5 inch2
Port Inlet
Width × Height
2.36" × 14.17"
Port Length 18.26"


Detail Size Quantity
Top / Bottom 25.59" × 15.78" 2
Front 22.44" × 14.17" 1
Rear 25.59" × 14.17" 1
Left 14.21" × 14.17" 1
Right 15.00" × 14.17" 1
Port 11.85" × 14.17" 1
Port 2.47" × 14.17" 1
Ø285mm 25.59" 22.44" 15.78" 14.21" 15.78" 14.21" 15.75" 14.17" Top Top Bottom Bottom Rear Front Left Right Rear Front Left Right subbox.pro
