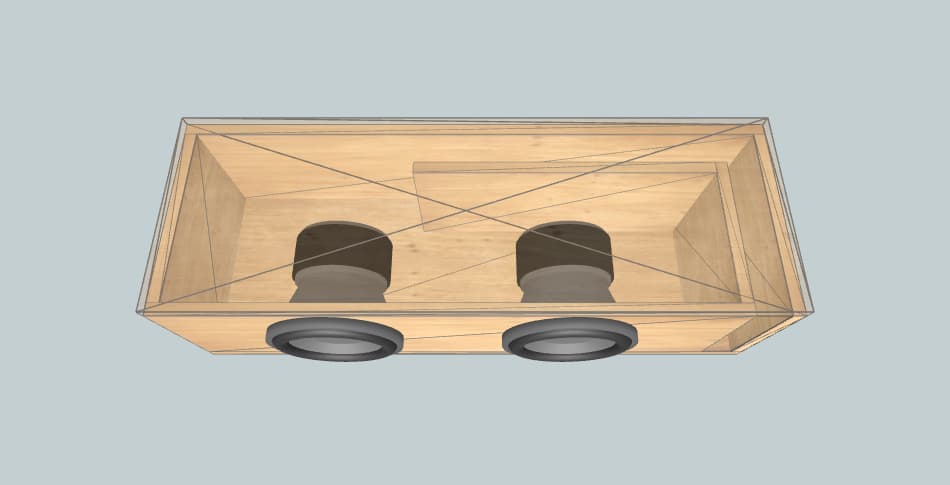

Box External Dimensions Width × Height × Depth |
15.00" × 10.50" × 10.44" |
| Material Thickness | 0.71" |
| Net Internal Volume | 0.60 ft3 |
| Tuning Frequency | 40 Hz |
| Port Area | 3.1 inch2 |
| Pipe Inner Diameter | 2.00" |
| Pipe Length | 6.84" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 15.00" × 10.44" | 2 |
| Front / Rear | 15.00" × 9.08" | 2 |
| Left / Right | 9.03" × 9.08" | 2 |
