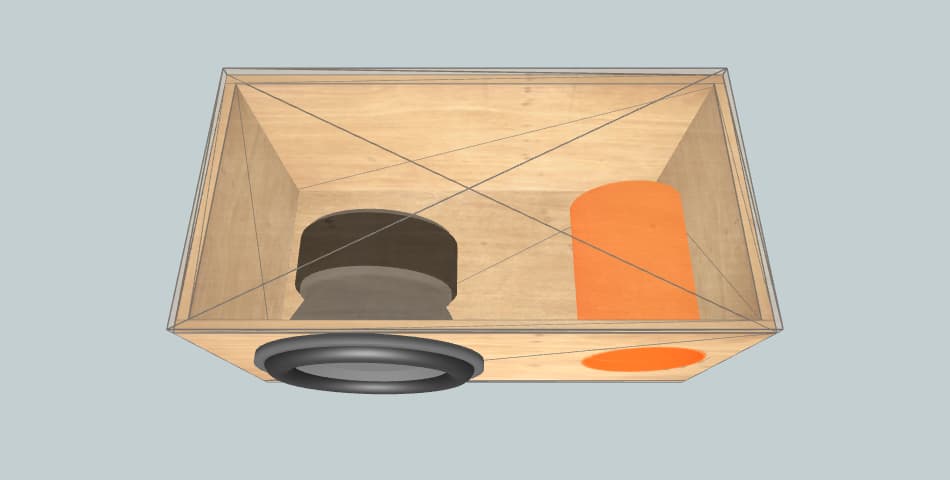

Box External Dimensions Width × Height × Depth |
43.31" × 35.43" × 18.94" |
| Material Thickness | 0.71" |
| Net Internal Volume | 10.59 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 176.8 inch2 |
| Port Inlet Width × Height |
5.20" × 34.02" |
| Port Length | 33.71" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 43.31" × 18.94" | 2 |
| Front | 37.40" × 34.02" | 1 |
| Rear | 43.31" × 34.02" | 1 |
| Left | 17.52" × 34.02" | 1 |
| Right | 18.23" × 34.02" | 1 |
| Port | 12.32" × 34.02" | 1 |
| Port | 14.77" × 34.02" | 1 |
