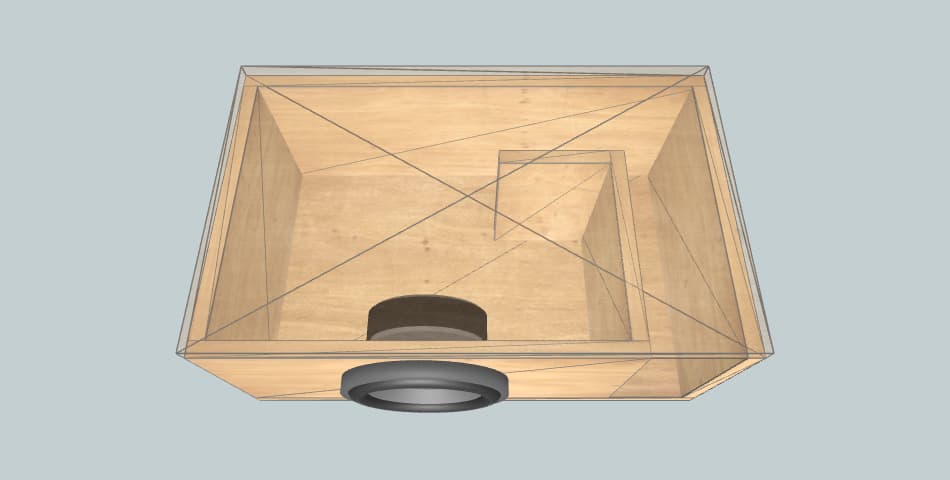

Box External Dimensions Width × Height × Depth |
25.59" × 9.84" × 7.48" |
| Material Thickness | 0.63" |
| Net Internal Volume | 0.57 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 7.0 inch2 |
| Port Inlet Width × Height |
0.81" × 8.58" |
| Port Length | 22.43" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 25.59" × 7.48" | 2 |
| Front / Rear | 25.59" × 8.58" | 2 |
| Left | 6.22" × 8.58" | 1 |
| Right | 4.78" × 8.58" | 1 |
| Port | 22.43" × 8.58" | 1 |
