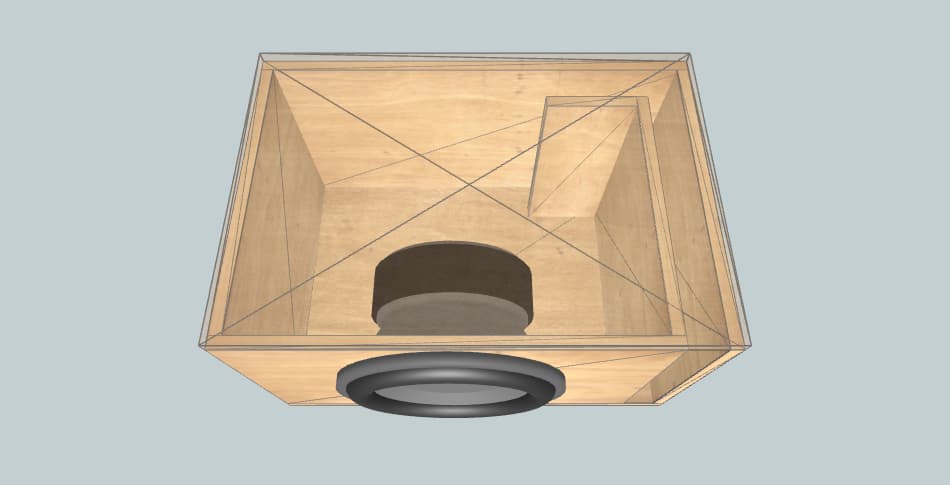

Box External Dimensions Width × Height × Depth |
27.50" × 20.00" × 28.50" |
| Material Thickness | 0.71" |
| Net Internal Volume | 7.29 ft3 |
| Tuning Frequency | 18 Hz |
| Port Area | 18.7 inch2 |
| Port Inlet Width × Height |
1.00" × 18.58" |
| Port Length | 16.05" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.50" × 28.50" | 2 |
| Front | 25.79" × 18.58" | 1 |
| Rear | 27.50" × 18.58" | 1 |
| Left | 27.09" × 18.58" | 1 |
| Right | 27.80" × 18.58" | 1 |
| Port | 15.34" × 18.58" | 1 |
