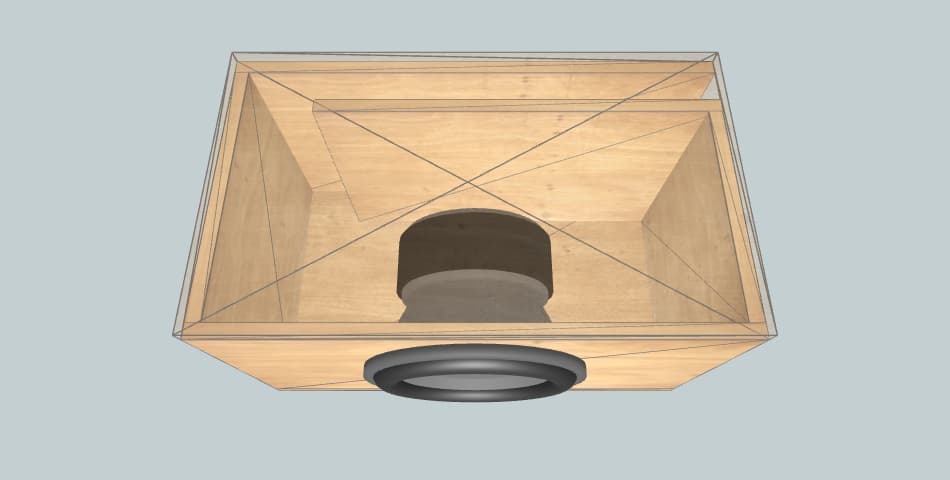

Box External Dimensions Width × Height × Depth |
17.00" × 14.00" × 29.81" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.50 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 34 inch2 |
| Port Inlet Width × Height |
2.72" × 12.50" |
| Port Length | 28.65" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 17.00" × 29.81" | 2 |
| Front | 13.53" × 12.50" | 1 |
| Rear | 17.00" × 12.50" | 1 |
| Left | 28.32" × 12.50" | 1 |
| Right | 29.07" × 12.50" | 1 |
| Port | 24.85" × 12.50" | 1 |
