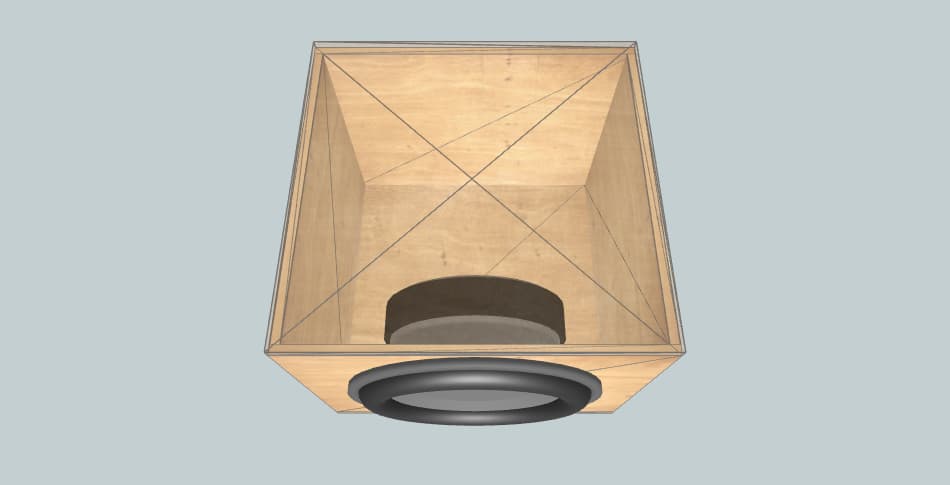

Box External Dimensions Width × Height × Depth |
47.24" × 47.24" × 11.85" |
| Material Thickness | 0.79" |
| Net Internal Volume | 12.36 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 58.9 inch2 |
| Pipe Inner Diameter | 8.66" |
| Pipe Length | 1.41" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 47.24" × 11.85" | 2 |
| Front / Rear | 47.24" × 45.67" | 2 |
| Left / Right | 10.28" × 45.67" | 2 |
