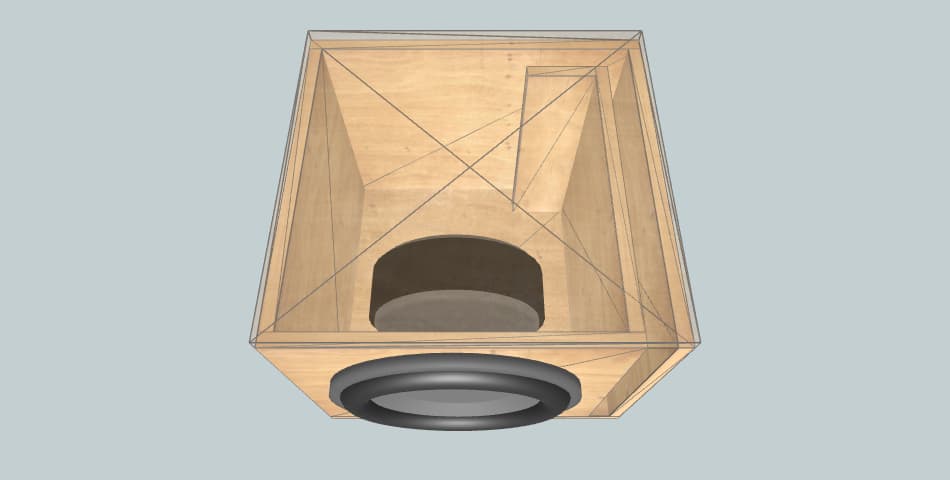

Box External Dimensions Width × Height × Depth |
24.41" × 13.78" × 14.11" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.66 ft3 |
| Tuning Frequency | 32.7 Hz |
| Port Area | 19.4 inch2 |
| Port Inlet Width × Height |
1.57" × 12.36" |
| Port Length | 24.03" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 24.41" × 14.11" | 2 |
| Front | 22.13" × 12.36" | 1 |
| Rear | 24.41" × 12.36" | 1 |
| Left | 12.70" × 12.36" | 1 |
| Right | 13.41" × 12.36" | 1 |
| Port | 11.13" × 12.36" | 1 |
| Port | 9.91" × 12.36" | 1 |
